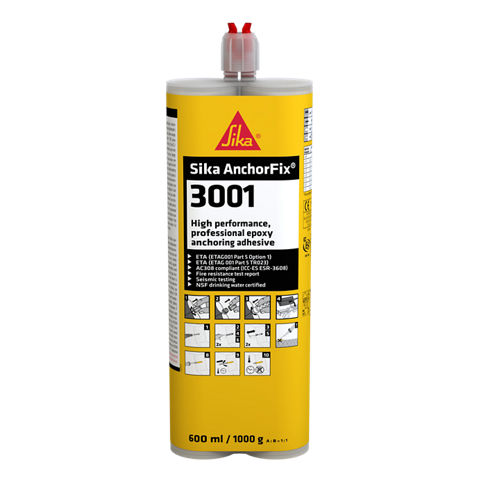

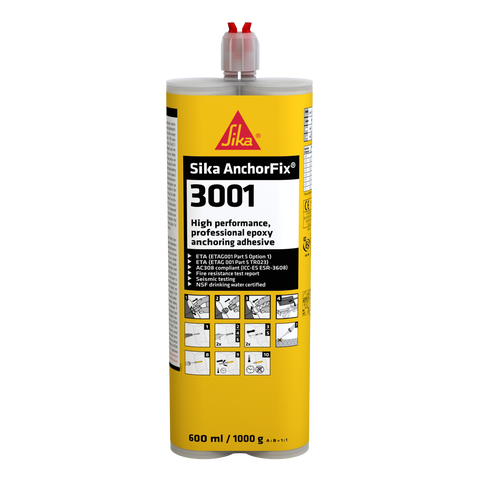

Sika AnchorFix®-3001
Solvent-free, thixotropic, 2-component, epoxy resin-based, high performance anchoring adhesive for threaded rods and reinforcing bars in both cracked and un-cracked concrete.
- Long Open Time
- Can be used in damp concrete
- High load capacity
- ETA to ETAG 001 for anchoring in cracked concrete
- ETA to ETAG 001 for rebar connections
- ESR to AC308 by ICC-ES, anchoring in cracked concrete for static, wind and earthquake loading
- ER to AC308 by IAPMO UES, anchoring in cracked concrete for static, wind and earthquake loading
- Drinking Water certified
- LEED Attestation available
- Fire resistance test report available
- Seismic testing available
- Styrene-free
- Excellent adhesion to the substrate
- Shrinkage-free hardening
- Standard guns can be used (with the 250ml cartridge)
- Low odour
- Low wastage
Usage
For the fixing of non-expanding anchors in the following:Structural work:
- Rebar / steel reinforcement anchoring in new and refurbishment works
- Threaded rods
- Bolts and special fastening / fixing systems
- Fixing of handrails, balustrades and supports
- Fixing of railings
- Fixing of window and door frames
- Concrete (cracked and un-cracked)
- Hollow and solid masonry
- Wood
- Hard natural and reconstituted stone*
- Solid rock*
Advantages
- Long Open Time
- Can be used in damp concrete
- High load capacity
- ETA to ETAG 001 for anchoring in cracked concrete
- ETA to ETAG 001 for rebar connections
- ESR to AC308 by ICC-ES, anchoring in cracked concrete for static, wind and earthquake loading
- ER to AC308 by IAPMO UES, anchoring in cracked concrete for static, wind and earthquake loading
- Drinking Water certified
- LEED Attestation available
- Fire resistance test report available
- Seismic testing available
- Styrene-free
- Excellent adhesion to the substrate
- Shrinkage-free hardening
- Standard guns can be used (with the 250ml cartridge)
- Low odour
- Low wastage
Packaging
| 250 ml standard cartridge | 12 cartridges per box pallet: 75 boxes |
| 400 ml side by side cartridge | 12 cartridges per box pallet: 60 boxes |
| 600 ml side by side cartridge | 12 cartridges per box pallet: 36 boxes |
| 1500 ml side by side cartridge | 5 cartridges per box pallet: 46 boxes |
Colour
| Component A | off-white |
| Component B | dark grey / black |
| Component A+B mixed | grey |
Product Details
SUSTAINABILITY
Sika AnchorFix®-3001 conforms on the LEED v2009 IEQc 4.1 Low Emitting Materials - Adhesives and Sealants, product category "Architectural Applications, Multipurpose construction adhesive".
APPROVALS / STANDARDS
- Bonded injection type anchor according to ETAG 001 Part 1 and 5 Option 7, ETA-14/0157, Declaration of Performance 020205010020000004 5034408, certified by notified product certification body 1020, certificate of constancy of performance 1020-CPD-090-032737, and provided with the CE marking.
- Post installed rebar connection according to ETAG 001 Part 1 and 5 TR 023, ETA 14/0368, Declaration of Performance 020205010020000004 5034408, certified by notified product certification body 1020, certificate of constancy of performance 1020-CPR-090-032640, and provided with the CE marking.
- Post-installed adhesive anchor in concrete elements according to ICC-ES acceptance criteria AC308, ICC-ES Report No. ESR-3608.
- Post-installed adhesive anchor in concrete elements according to ICC-ES acceptance criteria AC308, IAPMO evaluation report No. 292
- Fire resistance of Sika AnchorFix-3001 injection systems in conjunction with concrete reinforcing bar and subject to fire exposure, Centre Scientifique et Technique du Bâtiment (CSTB), Report No. 26054326/B
- Drinking Water System Components NSF/ANSI 61, IAPMO, File No. K-8319
Shelf life
24 months from date of production
All Sika AnchorFix®-3001 cartridges have the expiry date printed on the label.
Storage conditions
Stored properly in original, unopened, sealed and undamaged packaging in dry conditions at temperatures between +10 °C and +25 °C. Protect from direct sunlight.
Density
| Component A | ~1.2 kg/l |
| Component B | ~1.8 kg/l |
| Component A+B mixed | ~1.7 kg/l |
Compressive Strength
| ~85 N/mm2 (7 days, +20 °C) | (ASTM D 695) |
Modulus of Elasticity in Compression
| ~5 000 N/mm2 (7 days, +20 °C) | (ASTM D 695) |
Tensile Strength in Flexure
| ~45 N/mm2 (7 days, +20 °C) | (ASTM D 790) |
Tensile Strength
| ~23 N/mm2 (7 days, +20 °C) | (ASTM D 638) |
Service temperature
| Long term | -40 °C min. / +40 °C max. |
| Short term (1–2 hours) | +80 °C |
Application
Mixing ratio
Component A : component B = 1 : 1 by volume
Layer Thickness
7 mm max.
Sag Flow
Non-sag, even overhead
Product Temperature
Sika AnchorFix®-3001 must be at a temperature of between +10 °C and +30 °C for application.
Ambient Air Temperature
+4 °C min. / +40 °C max.
Dew Point
Beware of condensation.
Substrate temperature during application must be at least 3 °C above dew point.
Substrate Temperature
+4 °C min. / +40 °C max.
Curing time
| Temperature | Open time - Tgel | Curing time - Tcur |
| +40 °C | 3 minutes | 3 hours |
| +35 °C to 40 °C | 4 minutes | 4 hours |
| +30 °C to 35 °C | 6 minutes | 5 hours |
| +25 °C to 30 °C | 8 minutes | 6 hours |
| +22 °C to 25 °C | 11 minutes | 7 hours |
| +15 °C to 22 °C | 15 minutes | 8 hours |
| +10 °C to 15°C | 20 minutes | 12 hours |
| +4 °C to 9 °C | —* | 24 hours |
* Minimum cartridge temperature: +5 °C
SUBSTRATE QUALITY
Mortar and concrete must be at the required strength. No need to be 28 days old.
Substrate strength (concrete, masonry, natural stone) must be verified.
Pull-out tests must be carried out if the substrate strength is unknown.
The anchor hole must always be clean, dry, free from oil and grease etc.
Loose particles must be removed from the holes.
Threaded rods and rebars have to be cleaned thoroughly from any oil, grease or any other substances and particles such as dirt etc.
MIXING
Getting the cartridge ready: 250 ml
|
| 1. Unscrew the cap |
|
| 2. Pull out the plug |
|
| 3. Screw on the static mixer |
|
| 4. Place the cartridge into the gun and start application |
Getting the cartridge ready: 400ml, 600ml and 1500ml
|
| 1. Unscrew the cap |
|
| 2. Pull out the red plug |
|
| 3. Screw on the static mixer |
|
| 4. Place the cartridge into the gun and start application |
When the work is interrupted the static mixer can remain on the cartridge after the gun pressure has been relieved. If the resin has hardened in the nozzle when work is resumed, a new nozzle must be attached.
CLEANING OF TOOLS
Clean and tools and application equipment with Sika® Colma Cleaner immediately after use. Hardened / cured material can only be mechanically removed.
