Product Data Sheet Show all documents

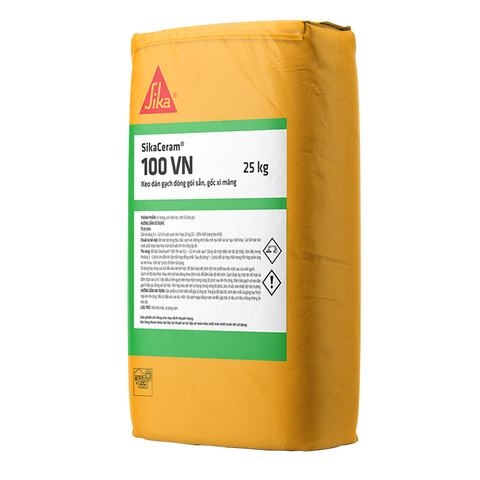

SikaCeram®-100 VN

Prepacked Cementitious Tile Adhesive

SikaCeram®-100 VN is prepacked cementitious. The product is ideal for installing ceramic tiles, homogeneous tiles. SikaCeram®-100 VN can be used as thin bed or thick bed adhesive for floor and wall tilling works and is suitable for internal.

  • Damp and fungi resistance is good.
  • Factory mixed – consistent quality.
  • Better workability. Saves time installation and material cost.
  • Tile can be adjusted up to 20 minutes after application.
  • Flexible use for many items, many different requirements.
  • Soaking of tiles in water before installation is not requried.
Product Data Sheet Show all documents

Usage

Suitable for fixing:
  • Wall and floor tiles
  • Ceramics tiles
  • Porcelain tiles
  • Absorbing tiles
  • Interior use only


Advantages

  • Damp and fungi resistance is good.
  • Factory mixed – consistent quality.
  • Better workability. Saves time installation and material cost.
  • Tile can be adjusted up to 20 minutes after application.
  • Flexible use for many items, many different requirements.
  • Soaking of tiles in water before installation is not requried.

Packaging

5 kg and 25 kg per bag

Colour

Powder / Grey

Product Details

Product Information

Chemical base

Cement, graded sand, several admixtures

Shelf life

Min 9 months if stored properly in unopended, original packaging.

Storage conditions

Dry, cool and shaded place

Density

1.50 kg/l (bulk density of powder)
1.85 kg/l (density of fresh mortar)
Technical Information

Tensile Adhesion Strength

≥ 0.5 N/mm² (on prepared, dampened concrete surface)

ISO 13007-2:2005
TCVN 7899-2:2008

Compressive Strength

~10 N/mm² (28 days)

ASTM C349-08

Thermal Resistance

Up to 90 °C



Application

Application Information

Mixing ratio

Approx 5.5 L - 6.5 L of clean water per 25 kg bag

Substrate Temperature

Minimum 8°C
Maximum 40°C

Pot Life

~60 minutes (at 27°C/ 65% r.H)

Adjustability Time

Approx 20 minutes.

CURING TREATMENT

Waiting time before grouting:

  • For wall - after 7 to 8 hours (depending on temparature).
  • For floor – after 24 hours.
  • Open to full traffic – after 14 days.
Consumption

Consumption

Consumption:

Consumption is always dependent on the substrate surface profile and roughness, the size of the tiles and the joints between them, as well as on the application technique (single adhesive layer on the substrate, or with an additional ‘buttering’ layer on the back of the tiles as recommended for tiles larger than 30 x 30 cm). As a guide:

Size of tiles

Notched trowel size

Consumption

Small

6 mm

~ 2–3 kg/m²

Medium

8 mm

~ 3–4 kg/m²

Large

10 mm

~ 5–7 kg/m²

Or use our on line tile adhesives consumption calculator at
http://sikaceram.com/nz/consumption-calculator/adhesive



Coverage: ~7- 8m² per 25 kg bag (based on 2 mm mortar thickness).

Application steps

MIXING

Add approximately SikaCeram®-100 VN powder to approx 5.5 L - 6.5 L of clean water and mix thoroughly using a hand-held or mechanical mixer for 3-5 minutes until a homogeneous lump-free paste is achieved. Allow the mix to stand 1-2 minute and thoroughly re-mix for another 1 minute before using.

APPLICATION

Use a notched trowel for application onto the substrate and buttering onto the back-face of the tile to enhance the performance and proper coverage of the adhesive. Tile with deep grove should be properly buttered and ensure the tile adhesive grout have proper caverage in the inner grove of the tiles. The tiles should be firmly pressed onto the substrate and immediately tamped into position. Any adjustment of tile should be done within 20 minutes after application. Ensure the tiles and tiles adhesive are properly in contact with the substrate.

CLEANING OF TOOLS

Remove non-hardened SikaCeram®-100 VN products from tools and equipment with water. Hardened material can only be removed mechanically.
